Virtually unlimited sizes of marker, chalk or tack surfaces surrounded by aluminum trim.
- Installed floor-to-ceiling and/or wall-to-wall
- Optional marker tray can be face installed or magnetic
- H-Bar (panel connector trim) can be vertical or horizontally installed
- H-Bar to match panels (painted to match dry erase or fabric/vinyl wrapped to match tack wall)
Installation Systems:
A. Series Snap On Trim Snap-On Clip attaches around the writing panel, then Snap-On Trim is then attached to the clips
Advantages & Disadvantages:
1. Simplest installation
2. No panels to be cut in the field
3. Cannot be installed completely wall-to-wall or floor-to-ceiling
B. Series JTrim
Advantages & Disadvantages:
1. Inside and Outside corners available
2. Installer to field-cut trim for best-fit
3. Spline can be used for seamless installation
4. Can be installed wall-towall and floor-to-ceiling

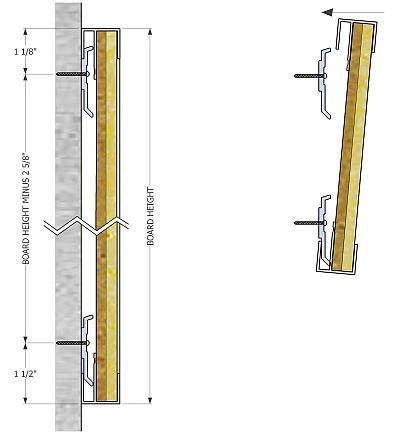

C. Series EZ Hang & Clip
Advantages & Disadvantages:
1. Concealed Fasteners
2. Size can be limited by weight
3. Cannot be installed completely wall-to-wall or floor-to-ceiling
4. System cannot be splined and is limited to 4'X16'
